The HeliaLux Spectrum is Juwel's full-spectrum LED bar — white 9000 K and 6500 K LEDs plus separate blue, red and green channels — that drops into the top frame of a Juwel aquarium in place of the standard light unit. It is the right upgrade if you want plant-grade output and control over how the tank looks through the day.
Read this before you choose: out of the box the Spectrum is an on/off light. Juwel states it can only be controlled in conjunction with the HeliaLux AppControl — without that controller there is no dimming, no sunrise and sunset ramp and no colour mixing, just all four channels at full output. If a bright tank on a mechanical timer is all you need, a MultiLux LED tube set does that for less.

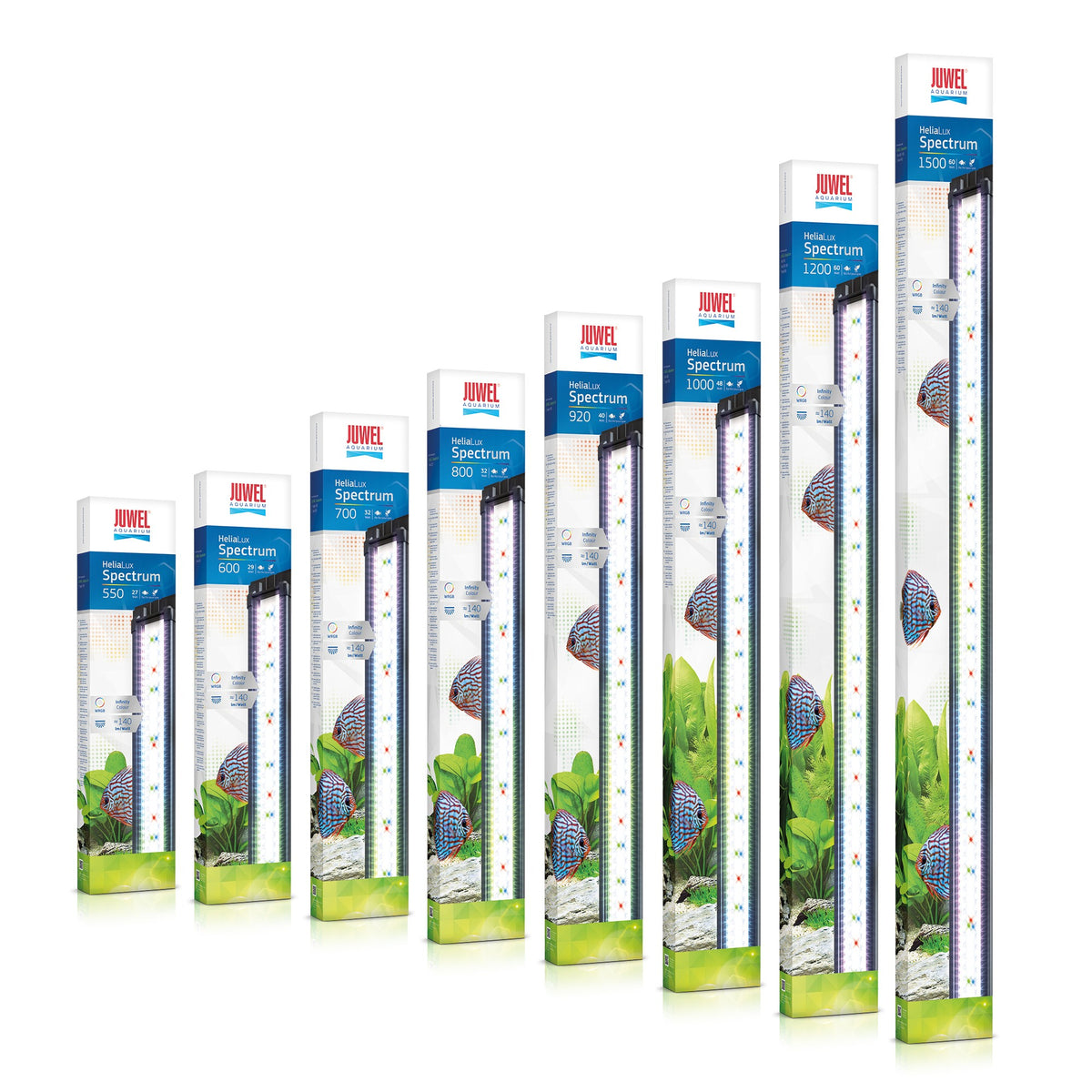

Choosing a length
The number is the Juwel frame size, not the tank length — the fixture itself is shorter (the 550 measures 534 mm). Match it to your aquarium:
- 550 27W — Trigon 350 LED
- 600 29W — Lido 120 LED
- 700 32W — Lido 200 LED, Trigon 190 LED
- 800 32W — Rio 125 LED
- 920 40W — Vision 180 LED
- 1000 48W — Rio 180 LED, Rio 290, Trigon 350 LED
- 1200 60W — Rio 240, Rio 300/350 LED, Vision 260 LED
- 1500 60W — Rio 400/450 LED, Vision 450 LED
Note that the Trigon 350 takes two different rail lengths — it appears against both the 550 and the 1000. Check which rail you are fitting before ordering; some owners need both.
What's in the box
- HeliaLux Spectrum light unit
- Power supply
- Power cable
The HeliaLux AppControl controller, the Spectrum Splitter for running two units, and the UniversalFit bracket for non-Juwel tanks (50–165 cm) are all sold separately. The HeliaLux power supplies we list are replacement parts — a new light already includes one.
Specifications

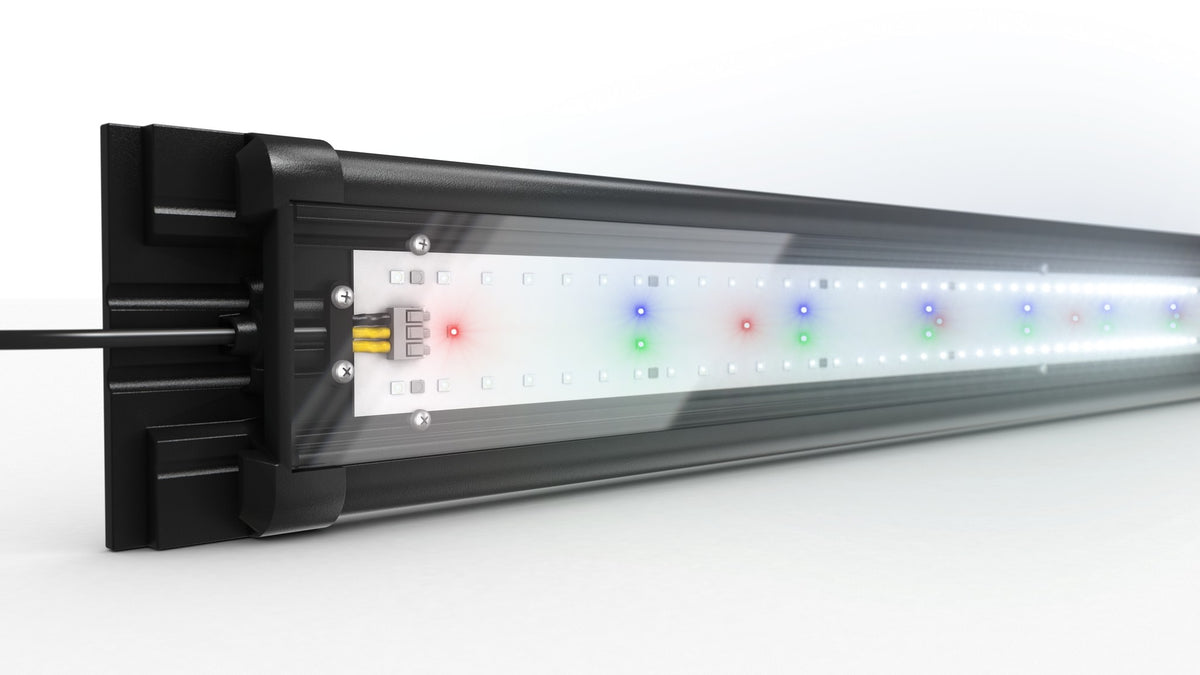

- White 9000 K and 6500 K LEDs, plus blue, red and green full-spectrum LEDs
- Around 140 lm/W — Juwel's figure, and it applies to the white LEDs
- 120° beam angle
- ActivePor membrane blocks moisture ingress while allowing controlled air exchange
- Around 50% less energy than an equivalent T5 unit
- Structured aluminium profile for heat management
- Two-year manufacturer warranty, in addition to your rights under Australian Consumer Law
Juwel does not publish an IP rating, operating voltage or rated LED life for this unit. It must not be operated under water — fit a drip loop and keep the connection above water level.
